::Datamax Barcode Printer(:: Datamax Printer,데이타맥스 바코드 프린터) 데이타맥스 라벨프린터
     Label(라벨),스티커,특수라벨,Tag,(텍),RFID,인쇄용으로 의류,유통,물류,제조,기타 산업 현장에 사용 적합니다
     - Datamax -O-Neil Barcod Printer 바코드 라벨 프린터 I4208, I4212, I4308,W6208,W6308,W8306
    - Datamax I-Class Mark II I-4212e,I-4310,I-4606, M-Class Mark II : M-4206,M-4210,M-4308
    - Datamax H-Class H-4212,H-4408,H-4310,H-4606,H-6210,H-6308 H-6212X H-6310X H-8308X







I-CLASS

I-4208

I-4212, I-4212e

I-4308, I-4310e








Printer Type

Direct Thermal, Optinal Thermal Transfer

Printing Speed

2"~6" per second (51mm~152mm)

2"~12" per second (51mm~304mm)

2"~8" per second (51mm~203mm) in 0.5" programmable increments

Resolution

203 dpi (8 dots/mm)

300 dpi (12 dots/mm)

Barcode Modules

5mm to 110 mil "X" dimension in picket fence or ladder orientations

Maximum Print Width

4.094 inch (104mm)

4.16 inch (105.6mm)

Print Length

0.25"~99"(6mm~2475mm) 0.75"(19mm) minimum print length with optional present sensor

Media Width

1"~4.65" (25mm~118mm)

Media Window

Clear side door panel to easily monitor media supply levels

Media Type

Roll-fed or fan-fold materials, die-cut or continous labels; perforated or continous tag/ticket stock

Media Thickness

0.025"~0.100"(0.0635mm~0.254mm)

Media Sensing

Adjustable sensor detects "see through" for liner-blacked die-cut labels and tags or reflective sensing for media with black stripe sensing

Supply Roll

8"(203mm) maximum diameter on 1.5"~3"(38mm~76mm) core. Fan-fold stock accepted from rear of printer

Revolving Media Hubs

-

Available in 1.5" and 3.0" options

Label Backfeed

For use optional cutter

Ribbons

Industry standard ribbon widths; 1"(25mm) ribbon core, 1968'(600M) in length

Cabinet

Metal construction

Barcode

Code 39, Interleaved 2 of 5, Code 128 (subsets A, B and C), Codabar, LOGMARS, UPC-A, UPC-E, UPC-2 & 5 digit addendums, EAN-8, EAN-13, EAN 2 & 5 digit addendums, UPC random weight, Code 93, MSI Plessey, Universal Shipping Container Symbology, UCC/EAN Code 128, Postnet, Code 128 MOD 43, PDF 417, UPS MaxiCode (mode 2 & 3), Datamatrix, Telepen

Resident Fonts

Ten alphanumeric fonts from 0.035"(0.89mm) to 0.64"(16.26mm) including and OCR-A, OCR-B; CG Triumvirate scalable font from AGFA

Character Set

Modified IBM Code Page 850; includes characters for English and most European, Scandinavian and Spanish speaking countries

Font Expansion/Rotation

All fonts expandable vertically and horizontally up to 24x; fonts and graphics can be printed in four directions: 0, 90, 180, and 270

Graphic Support

PCX, BMP and IMG files

Revers Fields/Mirror Image

Any font or graphic field can be printed as a normal or reverse image

Memory

1MB Downloadable Flash Program Memory, 8MB DRAM memory

2MB Downloadable Flash Program Memory, 16MB DRAM memory

Interface

Centroics Parallel port (IEEE 1284 compliant), RS232 at 2,400 to 38,400 BPS, optional Ethernet

Power Source

Auto-sensing 115, 230 VAC 50/60Hz; specify appropriate power cord when ordering

Operating Temperature

40F to 95F (4C to 35C)

Dimensions

12.70" H x 12.67" W x 18.60" D(322.6mm H x 320.6mm W x 472.5mm D)

Weight

45 lbs., 20.5Kg

Options

ALL OPTIONS ARE EASILY INSTALLED OR CAN BE ORDERED AS FACTORY INSTALLED

Thermal Transfer

Simple ribbon loading featuring collapsible ribbon hub

Standard Media Cutter W/ Tray

Maximum thickness 0.010"(0.254mm)

Light Duty Cutter

Maximum thickness 0.005"(0.127mm)

Internal Rewind

6"(125mm) OD capacity; label backing rewound in peel and present mode with present sensor used for on-demand label dispensing (factory or field installed)

External Rewind

8"(203mm) maximum OD capacity (full supply roll)

-

I/O Expansion Card

-

Featuring 8MB Flash, general purpose I/O, time and date battery back up

Passport

Portable keybord/display terminal provides interface for stand-alone printing

Label Present Sensor

Used for on-demand label dispensing

Network Connectivity



Hosts Supported :



Protocols Supported :

Internal Ethernet Adapter 10/100 mbps allows multiple users on various platforms to share the same printer

Novell NetWare  UNIX  Windows NT  LAN Manager  AppleTalk

DEC IPX TCP/IP LPR LAT NetBIOS/NetBEUI

Internal TWINAX/COAX Interface

Supports printing from IBM midrange or mainframe computers

ILPC Firmware

International Language Print Capabilities firmware allows printing of non-English character sets in over 40 languages

-

Font/Flash Expansion

-

Features 4MB font memory and 4MB addressable Flash memory expansion

International Language Print Capavility

-

Consisting of Font/Flash expansion card plus one of the fllowing: CG Triumvirate Scalable Bold, Condensed font and CG-Times Scalable font or; simplified Chinese GB Scalable font or; Kanji Gothic B Scalable font







W-CLASS

W-6208

W-6308

W-8306








Printer Type

Direct Thermal or Thermal Transfer

Print Speed

8IPS

8IPS

6IPS

Resolution

203dpi

300dpi

Barcode Modules

5 mil to 110 mil(203dpi) "X" dimension in picket fence or ladder orientations/3.3 mil to 80 mil(300dpi)

Maximum Print Width

6.61"

6.4"

8.5"

Print Length

0.5"~99"(0.5mm~2515mm)

Media Window

Clear side door panel to easily monitor media supply levels

Media Type

Roll-fed or fan-fold materials, die-cut or continous labels; Perforated or contnous tags/ticket stock

Media Thickness

0.0025"~0.0100" (0.064mm~0.254mm)

Media Sensing

Adjustable "See through" for liner-backed die-cut labels or punched tags; Left bias reflective sensor for media with black stripe sensing

Supply Roll

8"(203mm) maximum outside diameter on 1.5"~3"(38mm~76mm) core. Fan-fold stock accepted from bottom or rear of printer

Label Backfeed

For use with optional cutter or peel/present mode

Ribbons

Industry standard ribbon widths; 3"~9", 1"(25mm) ribbon core, 1509'(460M) in length

Cabinet

Metal construction

Barcodes

Code 39, Interleaved 2 of 5, Code 128 (subsets A, B and C), Codabar, LOGMARS, UPC-A, UPC-E, UPC-2 & 5 digit addendums, EAN-8, EAN-13, EAN 2 & 5 digit addendums, UCC/EAN-128 random weight, Code 93, MSI Plessey, Universal Shipping Container Symbology, Code 128 MOD 43, Postnet, PDF 417, UPS MaxiCode(mode 2 & 3), Datamatrix, Telepen

Resident Fonts

Ten alphanumeric fonts from 0.035"(0.89mm) to 0.64"(16.26mm) including OCR-A, OCR-B; DPL font 9 will be CG Triumvirate scalable front from AGFA

Character Set

>Modified IBM Code Page 850; includes characters for English and most European, Scandinavian and Spanish speaking countries

Font Expansion/Rotation

All fonts expandable vertically and horizontally up to 24x; fonts and graphics can be printed in four directions: 0, 90, 180, and 270. A scalable font engine is resident for user-downloadable fonts.

Graphic Support

PCX, BMP and IMG files

Reverse Fields/Mirror Image

Any font or graphic field can be printed as a normal or reverse image

Mamory

2MB Downloadable Flash Program Memory
16MB DRAM memory

Interfaces

Centroics Parallel port(IEEE 1284 compliant), RS232 at 300 to 38,400 BPS, optional Ethernet, Optional RS422

Power Source

115, 230 VAC 60/50Hz auto switching: specify power cord when ordering

Operating Temperature

40F to 95F (4C to 35C)

Dimensions

14.8"H x 13.8"W x 18.5"D

14.8"H x 16.1"W x 18.5"D

Weight

55 lbs

65 lbs

Options

(Field installable unless indicated differently)

Present Sensor

User for on-demand label dispensing

Cutter with Tray

Maximum thickness 0.010"(0.254mm)

Internal Rewind

Full roll: 8"(103mm) OD capacity; label backing rewound in peel and present mode and liner rewound in batch mode with present sensor used for on-demand label dispensing (factory installed)

External Rewind

8"(203mm) maximum OD capacity (full supply roll)

Memory Expansion

PC Card, Flash

Passport

Portable keybord/display terminal provides interface for stand-alone printing

Network Connectivity

Micro Print Server allows multiple user on various platforms to share the same printer

Host Supported

Novell NetWare, UNIX, Windows NT, LAN Manager, AppleTalk, DEC

Protocols Supported

IPX, TCP/IP, LPR, LAT, NetBIOS/NetBEUI

ILPC Firmware

International Language Print Capability firmware allows printing of non-English character sets in over 40 languages
Kanji Gothic B, Chinese GB scaleable Either require additional 2 Meg Flash







- Datamax M-CLASS MKll : M-4206 M-4210 M-4308
M-Class 프린터는 다양한 기능을 가진 작고 경제적이며, 좁은 공간에서도 효율적으로 사용할 수 있는 산업용 맞춤형 프린터 M-Class는 창고, 건강식품, 도매업 및 물류 쪽에서 사용하기에 특화된 제품. M-Class의 모듈러 설계는 제품의 보수,부품 교체 용이

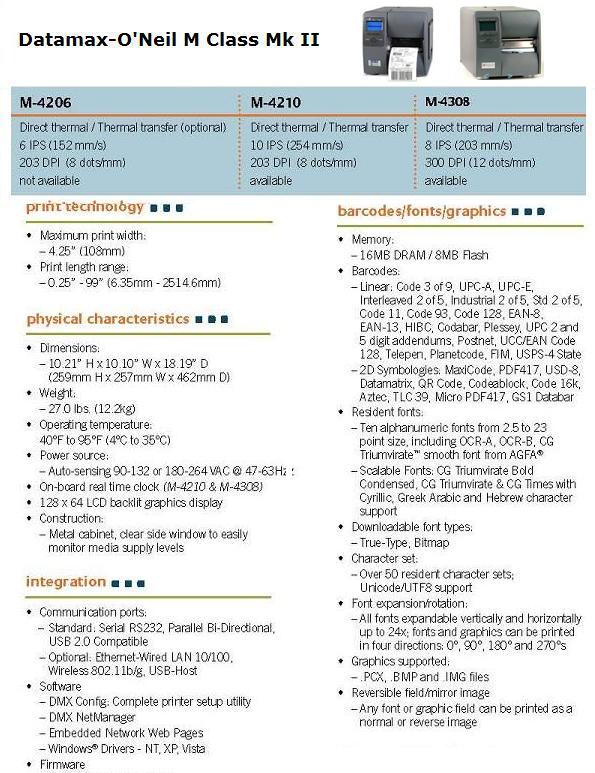

Datamax M-Class MK II : M-4206, M-4210, M-4308 Datasheet



- Datamax I-CLASS MKll : I-4212e I-4310 I-4606
I-Class 프린터는 datamax-o'neil 의 I-Class는 최상의 디자인과 옵션, 믿을 수 있는 제품입. I-Class Mark II는 bar가 더 높고, 최고 속도의 프로세서 및 대용량 메모리, 다양한 인터페이스를 제공 완벽한 프린터. 제품 식별, 의약품 라벨링 및 재고 파악 적용, 최고의 품질, 믿을 수 있는 기능 I-Class Mark II는 최고의 프린터

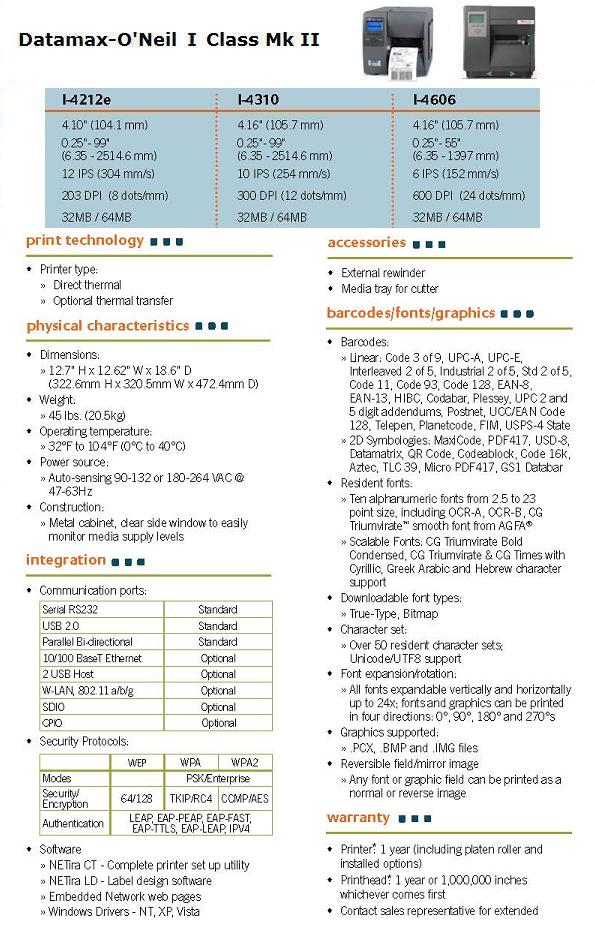

Datamax I-Class Mark Il : I-4212e, I-4310, I-4606 Datasheet



- H-CLASS : H-4212 H-4408 H-4310 H-4606 H-6210 H-6308 H-6212X H-6310X H-8308X
H-Class 프린터는 튼튼하고 많은 기능이 있으며 다양한 어플리케이션에 적용이 가능하고 다른 기종들보다 빠른 속도. 많은 인쇄량이 요구되는 많은 제조업, 창고, 운송업 등에 적합. 견고하고 믿을 수 있는 기어 구동 디자인

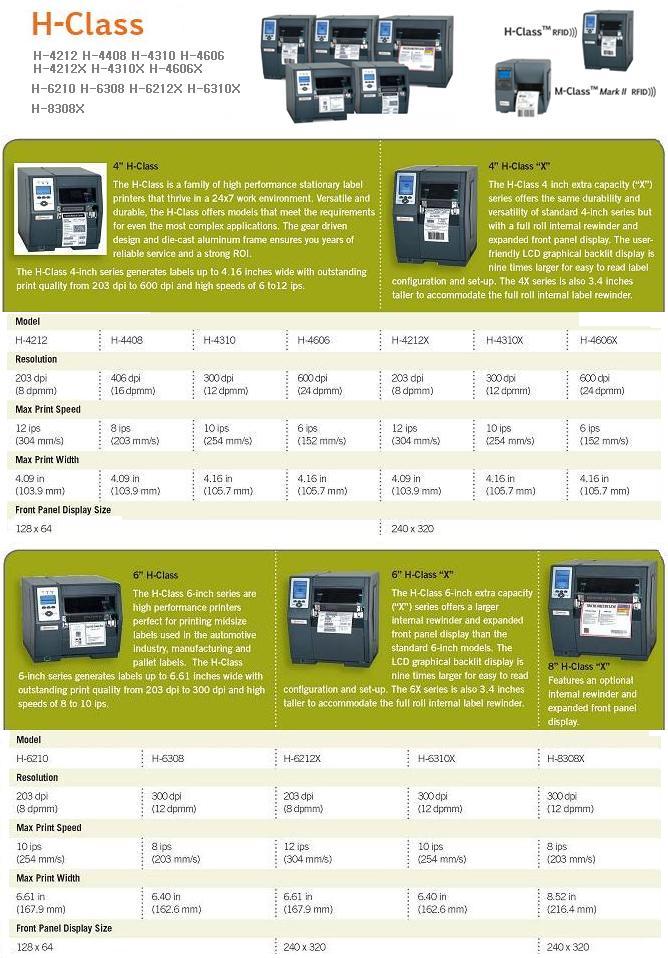

H-Class: H-4212 H-4408 H-4310 H-4606 H-4212X H-4310X H-4606X H-6210 H-6308 H-6212X H-6310X H-8308X



   바코드프린터::-Datamax barcode Printer,데이타멕스(데이타맥스)바코드프린터,Datamax프린터

Datamax E-3202 Datamax E-4203 Datamax E-4204 Datamax E-4304 Datamax I-4206 Datamax I-4208
Datamax I-4212 Datamax I-4308 Datamax I-4406 Datamax I-4604 Datamax Ovation Datamax Prodigy
Datamax Prodigy (203) Datamax Prodigy Max (203 dpi) Datamax Prodigy Max (300 dpi) Prodigy Plus
Datamax Prodigy Plus (203) Datamax ST-3210 Datamax ST-3306 Datamax SV-3210 Datamax SV-3306
Datamax Titan 6200 Datamax W-6208 Datamax W-6308 Datamax W-8306 Datamax XL

Datamax PRINTER Drivers for Windows 다운로드 <- 클릭
