<Intermec RFID Reader IF5 : 고정형리더기>
:: IF5 Fixed Reader ::

The Intermec IF5 is a fixed reader that filters information from tags, monitors external sensors and controls audible/visual indicators, without the expense, and potential point of failure of a separate server required by other RFID scanning solutions. 869 MHz 또는 915 MHz 판독과 기록 기능, 태그들로부터 정보를 수집,제어

                        - Communications Interface options: Ethernet 10/100BaseT or Wireless 802.11g
                        - Connection to Network : Ethernet, 802.11G or 802.3 wired
                        - 운영체제 : Open Source Linux version 2.4.23
                        - Antenna Connections : Four - Reverse SMA, -20dB software controller
                        - Philips Version 1.19, EPCglobal UHF Gen 2
                        - 프로토콜 : ANSI INCITS 256:2001, Intermec Basic Reader Interface
                        - 크기 : 231mm(가로) x 356mm(세로) x 95.3mm(높이)

Intermec RFID IF5 Data Sheet


<Intermec RFID Reader IF4 : 고정형리더기>
:: IF4 Fixed Reader ::

The Intermec IF4 serial reader is the ideal RFID peripheral for applications where an edge server or Programmable Logic Controller (PLC) is used for process control. The IF4 reduces the communications burden on the network and processing demand on the host PLC.

                        - An intelligent peripheral ? capable of internal filtering to reduce network traffic
                        - Software configurable to read/write EPC Class 1, EPC Gen 2 and ISO tags
                        - Factory configurable to operate in 865MHz, 869MHz, 915MHz or 950MHz RFID bands
                        - Directly monitors and controls presence detectors and signal lights
                        - Downloadable firmware for migration path to ISO 18000-6c

Intermec RFID IF4 Data Sheet


<Intermec RFID Reader IP4 : 핸디형리더기>
:: IP4 Portable RFID Reader ::

The IP4, an accessory handle for attachment to the popular Intermec 700 Series Color mobile computers, delivers first-of-its-kind capability by combining the power of a handheld mobile computing device equipped with PAN, LAN and WAN radios as well as a multi-protocol RFID radio that can be used worldwide

                        - Mobile RFID read/write capability for the popular 700 Series Mobile Computer
                        - Multi-protocol radio for worldwide use
                        - Ideal for exception based scanning
                        - Available for UHF frequency bands worldwide
                        - Integrated circular polarized antenna reads tags in any orientation
                        - Optional linear antenna maximizes read range, Antana:내장형
                        - 탑재PDA :700 Series Color Mobile Computer Model: 741, 751, 761

Intermec RFID Reader IP4 Data Sheet


<Intermec RFID Mobile Computer : 모바일 컴퓨터>
:: 700 Series Color Mobile Computer Model :741,751,761 ::

The 741/751/761 color mobile computers bring updated technolgies to the front-line worker on the road, in the field or on the factory floor, meeting the demands of mobile workers for reliable tools to do their jobs

                        - OS : Microsoft Windows for Pocket PC
                        - Radio Options: LAN: 802.11b/g (Wi-Fi cert), WAN: GSM/GPRS/EDGE, CDMA/1xRTT, Bluetooth
                        - Microprocessor: Intel Xscale Processor, 400 MHz
                        - Memory: 64 MB RAM (128 MB optional) Flash ROM: 64 MB
                        - Scan Engine: Integrated area imager, Linear imager; Standard Range laser
                        - Battery Type/Supply: Lithium-Ion, 7.2V, 2400 mAh

Intermec RFID PDA Data Sheet


<Intermec RFID Reader IV7 : 지게차용 리더기>
:: IV7 Vehicle Mount RFID Reader ::

RFID has always delivered the twin conveniences of hands-free scanning with little or no human intervention. Now, Intermec has taken that to the next level by adding the convenience of mobility with the new IV7 Vehicle Mount RFID reader. The IV7 joins an award winning family of readers that include several handheld and fixed mount form factors

                        - First RFID reader specifically created for mobile mount applications
                        - Supports multiple air interfaces including ISO, Gen 2 and Class 1
                        - Rugged cast aluminum alloy housing, sealed to IP65
                        - Designed for serial attachment to Intermec’s CV60 vehicle mount computer
                        - General purpose inputs/outputs

Intermec RFID Reader IV7 Data Sheet


<Intermec Antennas >
:: Intermec Antennas : IA31A ::

Joining the diversified line of RFID readers are the Intermec RFID antennas. The RFID antenna family offers a variety of gain, polarization and radiation pattern options. This antenna is designed for fixed and some vehicle mount applications

Intermec IA31A Enclosed Dipole Array Directional Data Sheet


<Intermec Antennas >
:: Intermec Antennas : IA31B ::

Joining the diversified line of RFID readers are the Intermec RFID antennas. The RFID antenna family offers a variety of gain, polarization and radiation pattern options. This antenna is designed for fixed and some vehicle mount applications

Intermec IA31B UHF Directional Panel Data Sheet


<Intermec Antennas >
:: Intermec Antennas : IA33A ::

Joining the diversified line of RFID readers are the Intermec RFID antennas. The RFID antenna family offers a variety of gain, polarization and radiation pattern options. This antenna is designed for fixed and some vehicle mount applications

Intermec IA33A Circularly Polarized Panel Data Sheet


<Intermec Antennas >
:: Intermec Antennas : IA33B ::

Joining the diversified line of RFID readers are the Intermec RFID antennas. The RFID antenna family offers a variety of gain, polarization and radiation pattern options. This antenna is designed for fixed and some vehicle mount applications.

Intermec IA33B Low Profile Data Sheet


<Intermec Antennas >
:: Intermec Antennas : IA36A ::

Joining the diversified line of RFID readers are the Intermec RFID antennas. The RFID antenna family offers a variety of gain, polarization and radiation pattern options. This antenna is specifically designed for vehicle mount applications where shock and vibration can far exceed the specifications of antennas designed for fixed applications. Its pulltruded fiberglass radome makes it one of the toughest antennas on the market

Intermec IA36A Rugged Data Sheet


<Intermec Antennas >
:: Intermec Antennas : IA36B ::

Joining the diversified line of RFID readers are the Intermec RFID antennas. The RFID antenna family offers a variety of gain, polarization and radiation pattern options. This antenna is specifically designed for vehicle mount applications where shock and vibration can far exceed the specifications of antennas designed for fixed applications. Its pulltruded fiberglass radome makes it one of the toughest antennas on the market

Intermec IA36B Rugged Data Sheet


<Intermec Antennas >
:: Intermec Antennas : IA39A ::

Joining the diversified line of RFID readers are the Intermec RFID antennas. The RFID antenna family offers a variety of gain, polarization and radiation pattern options. This antenna is specifically designed for vehicle mount applications where shock and vibration can far exceed the specifications of antennas designed for fixed applications. Its pulltruded fiberglass radome makes it one of the toughest antennas on the market.

Intermec IA39A Rugged Data Sheet


<Intermec Antennas >
:: Intermec Antennas : IA39B ::

Joining the diversified line of RFID readers are the Intermec RFID antennas. The RFID antenna family offers a variety of gain, polarization and radiation pattern options. This antenna is specifically designed for vehicle mount applications where shock and vibration can far exceed the specifications of antennas designed for fixed applications. Its pulltruded fiberglass radome makes it one of the toughest antennas on the market.

Intermec IA39B RuggedData Sheet


<IntermecTags, Inserts and Smart Labels >
:: 915 MHz Container Tag ::

The Container Tag is a high-performance durable product originally designed for use with plastic pallets, but which has a proven track record in a variety of applications. This tag is one of the most versatile designs in the portfolio due to its consistent performance with a wide range of materials

Intermec RFIDTagGuide Data Sheet


<IntermecTags, Inserts and Smart Labels >
:: 915 MHz ID Card ::

The 915 MHz ID Card from Intermec is the first credit card format intelligent identification card on the market that provides both long-range identification and read/write capability for a wide range of applications from Homeland, corporate and personal security to luggage tags and customer loyalty programs. ID cards can be used in a variety of both short and long-range applications, unlike proximity cards, which are primarily used for secured ingress and egress applications, and limited, to ranges of less than two feet


<IntermecTags, Inserts and Smart Labels >
:: Intermec_915 MHz Tag for RPC ::

Intermec's 915 MHz reusable plastic container (RPCs) tag is specifically designed for tracking RPC's throughout their service lives. Compact, inconspicuous, and completely encapsulated in a protective thermal plastic alloy, Intermec RPC tags can withstand shipping, washing, and heavy-duty wear.


<IntermecTags, Inserts and Smart Labels >
:: Intermec_915 MHz Windshield Tag ::

The Windshield Tag is optimized for attachment to vehicle windshields and is primarily used for highway toll applications and for access control in parking areas or gated communities. It has also been implemented into several civilian and military homeland security projects. The tag is produced on a flexible substrate and includes an adhesive release liner for ease of installation.


<IntermecTags, Inserts and Smart Labels >
:: Intermec_Large Rigid Tag ::

Intermec's Large Rigid tag is a truly passive UHF radio frequency identification (RFID) transponder that delivers superior performance on a variety of surfaces and is available in both Gen 2 and ISO 18000-6B versions.

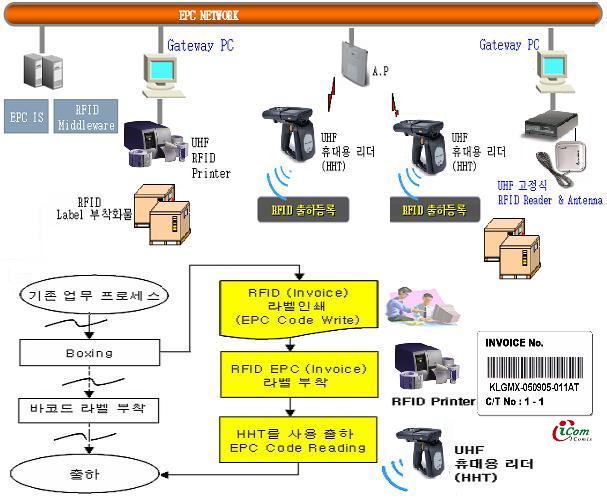

RFID System EPC Network,시스템구성운용 : RFID핸디터미널/고정형리더,RFID프린터,RFID라벨




RFID & RFID시스템 (Radio Frequency IDentification)란?



RFID태그(Tag) 및 RFID라벨(Label) ⇔ RFID 리더(Reader)간의 전파를 이용한 무선통신을 통하여 Tag,Label 내에 포함되어 있는 고유의 정보를 식별하는 센서 기술

  ※ 태그(Tag) : 제품에 관한 각종정보를 기록하는 전자칩
      리더(Reader) : 안테나를 통해 태그에 정보를 기록하거나, 기록된 정보를  읽어내는 기기
RFID의 특징
    인식속도 빠르고, 신뢰성 있으며 동시판독이 가능,장애물의 영향이 없으며, 이동중에도 인식이 가능,바코드에 비해 인식거리가 넓음 ,Tag의 데이터 변경 및 추가가 자유롭고 냉온, 습기, 먼지, 열 등의 열악한 판독,환경에서도 판독율이 높음,Tag은 위조가 불가능하며 반영구적이고, 재사용이 가능하다
주파수 대역별 RFID의 종류 및 특징
주파수 Low
(125KHz)
High
(13.56MHz)
UHF
(860~960 MHz)
Microwave
(2.45~5.8GHz)
인식거리
( 판독거리 )
0.5m 0.5m 3m 1m이하
적용
응용분야
근접보안
FA
동물관리
차량잠금장치
교통카드
도시관리
차고관리
Pallet추적
SCM
재고관리
생산관리
수화물추적 등
SCM
자동톨게이트
인식속도
판독속도
느리다     빠르다
Tag
라벨크기
대   형     소   형

자동인식기술(바코드,RFID)의 장단점 비교



자동인식제품 적용분야 장점 단점

바코드

제품 인쇄기능/저렴한 가격
오랜기간 발달된 기술
한번에 한 개만 판독가능
매우 짧은 판독거리
훼손되기 쉬움

수동 (Passive)RFID

제품
상자
화물
팔레트
트레일러
자동차
동시 판독
빠른  속도
장애물 영향 받지 않음
관리자 불필요
방향성 안테나 불필요
중간 판독범위
바코드와 연동가능
2~30ft의 판독거리
새로운 기술
각 주파수 대역별
표준화 진행중

능동
(Active)RFID

높은 가격의 자산
트레일러
자동차
긴 판독거리
장애물 영향 받지 않음
동시판독
Tag와 Readers의 가격이 높다
배터리 수명이 제한
새로운 기술
